Red Sea

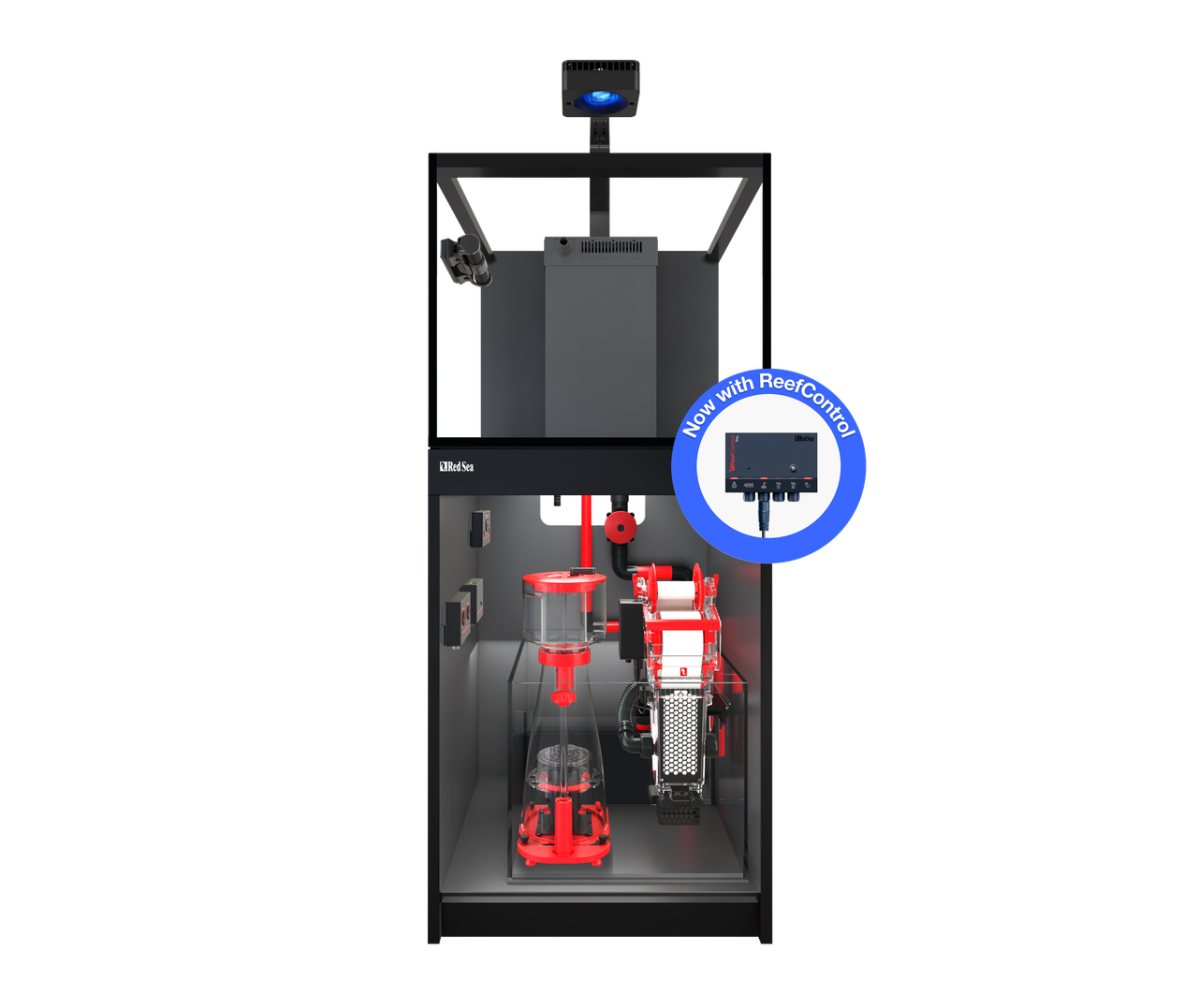

REEF-FRAME MAX 170 BLACK 46 G EURO BRACED
$3899.00
- Brand
- Red Sea
- SKU
- R43772
DropshipCatalog updated . Price and availability are a snapshot; checkout rechecks current details. Ships directly from the supplier. Confirm delivery timing with the store.
Shipping, tax, account sign-in and payment are completed with The Hidden Reef at checkout.
Description
Description
The Red Sea REEF-FRAME MAX series takes the ultra-durable, eurobraced foundation of the standard REEF-FRAME line and elevates it into a fully integrated, Plug & Play smart reef system.
Instead of sourcing individual components, every REEF-FRAME MAX comes pre-equipped with Red Sea’s full suite of ReefBeat app-controlled hardware—including ReefLED G2 lighting, ReefWave gyre pumps, ReefRun DC return pumps, REEFER DC Skimmers, ReefMat automatic roller filters, and the ReefATO+ top-off system.
What’s Included in the REEF-FRAME MAX Ecosystem?
Every REEF-FRAME MAX system connects seamlessly through the Red Sea ReefBeat App for centralized monitoring, scheduling, and notifications:
• ReefLED G2 Smart Lighting: Equipped with custom mounting arms. Offers REEF-SPEC spectrum tuned for maximum coral color and growth, a 23,000K blue channel, UV/violet LED arrays, and dedicated 3W moonlight.
• ReefWave Gyre Circulation Pumps: Cross-flow technology delivering uniform, customizable water movement with silent sine-wave motor operation.
• ReefRun DC Variable Speed Return Pump & Controller: Whisper-quiet, energy-efficient circulation with app-controlled flow rates, feed modes, and safety alerts.
• REEFER DC Skimmer: Self-leveling smart skimmer featuring PSK DC pump technology, high-precision foam sensor, and automated neck cleaning alerts to eliminate skim-over.
• ReefMat Automatic Fleece Roller: Plug & Play fleece roller filter replacing traditional filter socks for crystal-clear water with automated roll tracking.
• ReefControl Pro
• ReefATO+ System: 3-in-1 auto top-off system featuring solid-state water level sensors, digital temperature monitoring, and an external leak detector.
Red Sea REEF-FRAME MAX 170 (46.2 Gal / 175 L System)
Overview
The Red Sea REEF-FRAME MAX 170 is a complete, compact 24-inch smart reef system. Designed for small spaces without sacrificing power, this setup packages Red Sea's heavy-duty eurobraced glass tank and extra-fortified cabinet with a complete ecosystem of smart equipment.
Included MAX Equipment Package
• Lighting: 1× ReefLED 115 G2 with custom tank-mount arm
• Circulation: 1× ReefWave 25 Gyre Pump (1,980 GPH)
• Return Pump: 1× ReefRun 4000 DC Return Pump & Controller
• Skimmer: 1× REEFER DC 300 Skimmer
• Mechanical Filtration: 1× ReefMat 250 Fleece Roller
• ReefControl Pro: ReefBeat-connected, up to 7 ReefSense probes
• ReefSense pH/temperature probe: Continuous pH and temperature monitoring
• Auto Top-Off: 1× ReefATO+ 3-in-1 Auto Top-Off System
Technical Specifications
• Total System Volume: 46.2 gal (175 L)
• Display Tank Volume: 35.9 gal (136 L)
• Sump Volume: 10.3 gal (39 L)
• Display Dimensions (L × W × H): 23.6″ × 20.1″ × 20.9″ (60 cm × 51 cm × 53 cm)
• Total System Height (excl. lights): 53.9″ (137 cm)
• Glass Thickness: Front: 10 mm (0.39″) | Sides: 12 mm (0.47″) | Bottom: 10 mm (0.39″)
• Return Outlets: 1× 25mm curved return outlet
• Piping & Valve: Hydrodynamic plumbing with ReefGate precision valve
• Cabinet Finishes: Black, White, Classic Oak
| REEF-FRAME 170 | REEF-FRAME 250 | REEF-FRAME 350 | REEF-FRAME 500
Total system water volume | 46.2 gal | 65 gal | 93.4 gal | 136.3 gal
Display tank water vol. | 35.9 gal | 53.9 gal | 74.6 gal | 107 gal
In-Cabinet sump water vol. | 10.3 gal | 11 gal | 18.8 gal | 29.3 gal
Display tank Length | 23.6 " | 35.4 " | 47.2 " | 59.1 "
Display tank width | 20.1 " | 20.1 " | 21.6 " | 22.6 "
Display tank height (excluding light unit) | 20.9 " | 20.9 " | 20.9 " | 21.6 "
Total system height (excluding light unit) | 53.9 " | 53.9 " | 53.9 " | 55.9 "
Ultra-clear front glass | 0.39 " | 0.47 " | 0.47 " | 0.59 "
Ultra-clear side glass | 0.47 " | 0.47 " | 0.59 " | 0.59 "
Bottom glass | 0.39 " | 0.47 " | 0.47 " | 0.59 "
Back glass thickness | 0.31 " | 0.39 " | 0.47 " | 0.59 "
Bracing | Euro brace | Euro brace | Euro brace | Euro brace
Aquarium Support | Full cabinet | Full cabinet | Full cabinet | Full cabinet
ReefLED advanced light system | 1x ReefLED G2 115 w/ Mounting Arm | 2x ReefLED G2 115 w/ Mounting Arm | 2x ReefLED G2 115 w/ Mounting Arm | 3x ReefLED G2 115 w/ Mounting Arm
Water circulation | 1x ReefWave 25 | 2x ReefWave 25 | 2x ReefWave 25 | 2x ReefWave 45
Main system pump | 1x ReefRun G2 4000 | 1x ReefRun G2 4000 | 1x ReefRun G2 6000 | 1x ReefRun G2 8000
Return outlet nozzles | 1x 25mm (Single pump) | 1x 25mm (Single pump) | 2x 25mm (Single or dual pump) | 2x 25mm (Single or dual pump)
Hydrodynamic piping with Gate valve | Yes | Yes | Yes | Yes
Protein Skimmer | 1x Reefer DC Skimmer RSK 300 | 1x Reefer DC Skimmer RSK 300 | 1x Reefer DC Skimmer RSK 600 | 1x Reefer DC Skimmer RSK 600
ReefMat / NanoMat | 1x ReefMat 250 | 1x ReefMat 250 | 1x ReefMat 500 | 1x ReefMat 1200
ReefControl Controller | ReefControl Pro | ReefControl Pro | ReefControl Pro | ReefControl Pro
ATO Module with integrated Temp Sensor | ReefControl ATO Module | ReefControl ATO Module | ReefControl ATO Module | ReefControl ATO Module
ReefSense pH & Temp Probe | 1x ReefSense pH/ temperature probe | 1x ReefSense pH/ temperature probe | 1x ReefSense pH/ temperature probe | 1x ReefSense pH/ temperature probe
